Rincian produk
Tempat asal: Cina
Nama merek: Tianniu
Sertifikasi: ISO-9001
Nomor model: seri NF
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 1 buah
Harga: Negotiable
Kemasan rincian: Karton melalui pengiriman laut dengan pesawat terbang
Waktu pengiriman: 5-10 hari kerja
Syarat-syarat pembayaran: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Menyediakan kemampuan: 10.000 per bulan
nama: |
Dalam proses pemasangan kopling satu arah freewheel, faktor penyebab stagnasi meliputi aspek-aspek b |
Bahan: |
Baja Bantalan GCR 15 |
Jenis: |
bantalan Satu Arah |
Max. Maks. Overrunning (r/min) Berlebihan (r/mnt): |
5000-250 |
Torsi (Nm）: |
20-44375 |
Berat (KG): |
0,1-95 |
Ukuran Bor (mm): |
37-320 |
nama: |
Dalam proses pemasangan kopling satu arah freewheel, faktor penyebab stagnasi meliputi aspek-aspek b |
Bahan: |
Baja Bantalan GCR 15 |
Jenis: |
bantalan Satu Arah |
Max. Maks. Overrunning (r/min) Berlebihan (r/mnt): |
5000-250 |
Torsi (Nm）: |
20-44375 |
Berat (KG): |
0,1-95 |
Ukuran Bor (mm): |
37-320 |

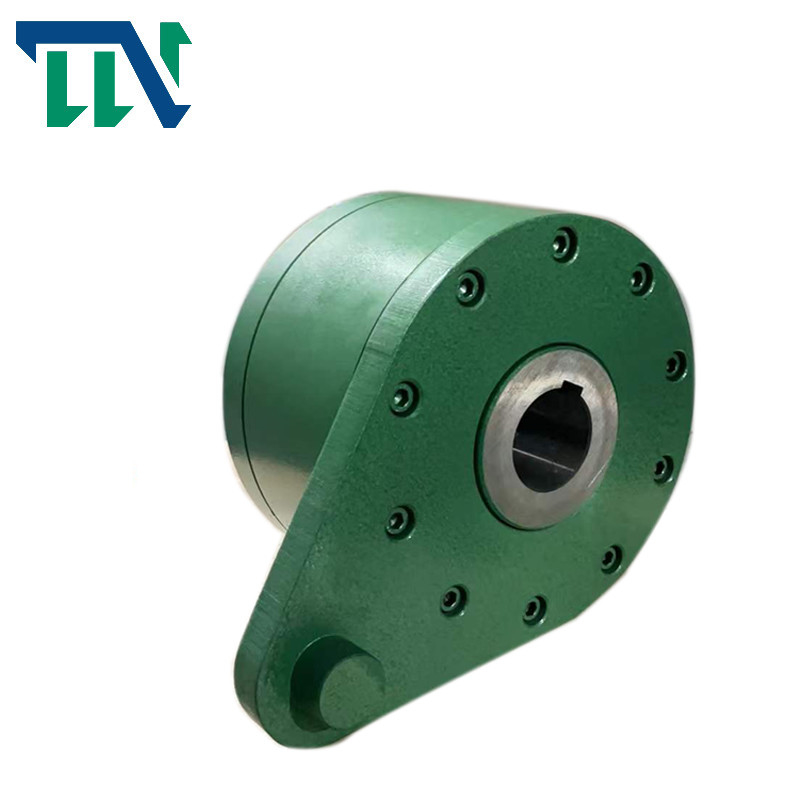

Satu arah arah bantalan NF100 Backstop Clutch Sprag
Pendahuluan produksi
NF type non-contact backstop is a new type of backstop device that skillfully uses the centrifugal force of the wedge with special shape and its special geometric relationship with the inner and outer rings to realize the non-contact and wear-free operation of the main components and reliable backstop in the reverse direction.
Dalam proses pemasanganFreewheel satu arah kopling, faktor-faktor yang menyebabkan stagnasi meliputi aspek berikut:
1Faktor-faktor pengolahan dan pembuatan sendiri bantalan;
2. faktor pengolahan dan manufaktur lubang pusat roda bebas;
3. Faktor deformasi material yang disebabkan oleh torsi pengetatan baut;
4Faktor-faktor dari metode pemasangan bantalan panduan dan sebagainya.
Fitur
1.Pengenalan Teknologi Jerman
2.Tim Teknis Inti
3Pabrik Manufaktur Profesional
4.support Peralatan Superior
5. OEM / kustomisasi Tersedia
Parameter Produk
| Jenis | Ukuran | Kecepatan yang melampaui batas | Dimensi | Berat badan | |||||||||
| dH7 | TKN1) | nimax2) | namax3) | Dn6 | D5 | D6 | L | t | bH11 | r | r1 | ||
| [mm] | [Nm] | [min-1] | [min-1] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | |
| NF | 8 | 20 | 5000 | 6000 | 37 | 30 | 20 | 20 | 3 | 6 | 1 | 1.5 | 0.1 |
| 12 | 20 | 5000 | 6000 | 37 | 30 | 20 | 20 | 3 | 6 | 1 | 1.5 | 0.1 | |
| 15 | 78 | 4500 | 5400 | 47 | 37 | 26 | 30 | 3.5 | 7 | 1.5 | 1.5 | 0.3 | |
| 20 | 188 | 3000 | 3600 | 62 | 52 | 37 | 36 | 3.5 | 8 | 2 | 2 | 0.6 | |
| 25 | 250 | 2200 | 2600 | 80 | 68 | 49 | 40 | 4 | 9 | 2.5 | 2 | 1.1 | |
| 30 | 500 | 1800 | 2100 | 90 | 75 | 52.5 | 48 | 5 | 12 | 2.5 | 2 | 1.6 | |
| 35 | 663 | 1600 | 1950 | 100 | 80 | 58 | 53 | 6 | 13 | 2.5 | 2.5 | 2.3 | |
| 40 | 1100 | 1250 | 1700 | 110 | 90 | 62 | 63 | 7 | 15 | 3 | 2.5 | 3.1 | |
| 45 | 1500 | 1100 | 1500 | 120 | 95 | 69 | 63 | 7 | 16 | 3 | 2.5 | 3.7 | |
| 50 | 2375 | 850 | 1300 | 130 | 110 | 82 | 80 | 8.5 | 17 | 3.5 | 3 | 5.4 | |
| 55 | 2500 | 800 | 1200 | 140 | 115 | 83 | 80 | 9 | 18 | 3.5 | 3 | 6.1 | |
| 60 | 4250 | 700 | 1100 | 150 | 125 | 93.5 | 95 | 9 | 18 | 3.5 | 3.5 | 8.5 | |
| 70 | 5875 | 620 | 900 | 170 | 140 | 106 | 110 | 9 | 20 | 3.5 | 3.5 | 13 | |
| 80 | 10000 | 550 | 800 | 190 | 160 | 122 | 125 | 9 | 20 | 4 | 3.5 | 18 | |
| 90 | 17250 | 480 | 700 | 215 | 180 | 133 | 140 | 11.5 | 24 | 4 | 4 | 25.3 | |
| 100 | 19625 | 400 | 600 | 260 | 210 | 157 | 150 | 14.5 | 28 | 4 | 4 | 42.1 | |
| 130 | 34750 | 300 | 480 | 300 | 240 | 188 | 180 | 17 | 32 | 5 | 5 | 65 | |
| 150 | 44375 | 250 | 400 | 320 | 260 | 205 | 180 | 17 | 32 | 5 | 5 | 95 | |
