Rincian produk
Tempat asal: CINA
Nama merek: Tianniu
Sertifikasi: ISO 9001
Nomor model: seri GN
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 5 BUAH
Harga: Negotiable
Kemasan rincian: Karton melalui pengiriman laut dengan pesawat terbang
Waktu pengiriman: 3-5 hari kerja
Syarat-syarat pembayaran: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Menyediakan kemampuan: 10.000 per bulan
Nama: |

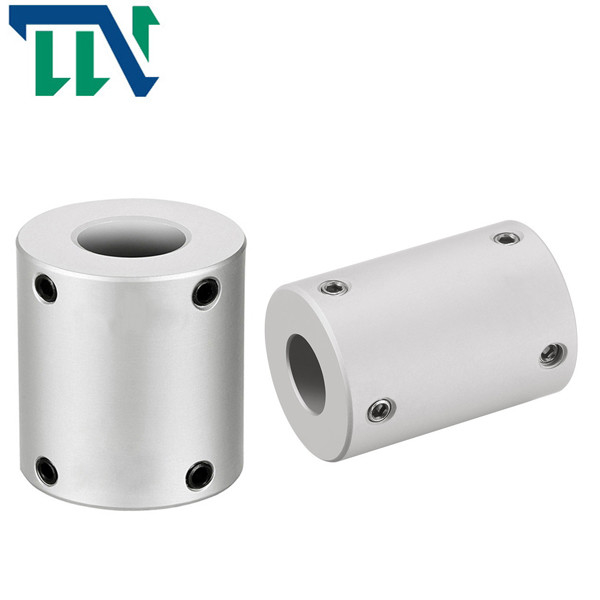

Kopling poros kaku |
Model: |
seri GN |
Bahan: |
Baja Aluminium |
Ukuran lubang: |
4-38mm |
Jaminan: |
12 bulan |
Ketebalan: |
21-81mm |
Diameter luar: |
16-65mm |
bahan elastomer: |
PA66 |
Pengobatan permukaan: |
Perlakuan oksidasi anodik |
Nama: |
Kopling poros kaku |
Model: |
seri GN |
Bahan: |
Baja Aluminium |
Ukuran lubang: |
4-38mm |
Jaminan: |
12 bulan |
Ketebalan: |
21-81mm |
Diameter luar: |
16-65mm |
bahan elastomer: |
PA66 |
Pengobatan permukaan: |
Perlakuan oksidasi anodik |
Setcrew kopling poros fleksibel kaku Metrik paduan aluminium
Parameter Produk
| parameter model | diameter lubang umum d1,d2 | D | L | F | M | mengencangkan sekrup torsi (NM) |
| GN-16X16 | 3,4,5,6,6,35,7,8 | 16 | 16 | 5 | M3 | 0,7 |
| GN-16x24 | 4,5,6.6,6.35,7,8 | 16 | 24 | 6 | M3 | 0,7 |
| GN-20x20 | 4,5,5,6,6,35,7,8,9,9.525,10 | 20 | 20 | 5 | M3 | 0,7 |
| GN-20x30 | 4,5,5,6,6,35,7,8,9,9.525,10 | 20 | 30 | 7 | M4 | 1.7 |
| GN-25x25 | 5,6,6.35,7,8,9,9.525,10,12 | 25 | 25 | 8 | M4 | 1.7 |
| GN-25x36 | 5,6,6.35,7,8,9,9.525,10,12 | 25 | 36 | 9 | M4 | 1.7 |
| GN-32x32 | 6.6.35,7,8,9,9.525,10,12,12,7,14,15,16 | 32 | 32 | 9 | M5 | 4 |
| GN-32x41 | 6.6.35,7,8,9,9.525,10,12,12,7,14,15,16 | 32 | 41 | 10 | M5 | 4 |
| GN-40x44 | 8,9,9.525,10,11,12,12,7,14,15,16,17,18,19,20 | 40 | 44 | 10.5 | M5 | 4 |
| GN-50x55 | 10,11,12,12,7,14,15,16,17,18,19,20,22,24,25 | 50 | 55 | 13 | M6 | 7 |
| GN-50x66 | 10,11,12,12,7,14,15,16,17,18,19,20,22,24,25 | 50 | 66 | 15 | M6 | 7 |
| GN-63x71 | 12,14,15,16,17,18,19,20,22,24,25,28,30,32 | 63 | 71 | 16 | M6 | 7 |
| parameter model | Nilai torsi (NM)* |
eksentrisitas yang diijinkan (mm)* |
sudut defleksi yang diijinkan (°)* |
deviasi aksial yang diijinkan (mm)* |
kecepatan maksimum rpm |
momen inersia (Kg.M2) |
Bahan lengan poros | pengobatan permukaan | bobot (g) |
| GN-16x16 | 5 | - | - | - | 23000 | 4.39x10-7 | Paduan aluminium kekuatan tinggi | Perawatan anodisasi | 6 |
| GN-16x24 | 5 | - | - | - | 23000 | 4.39x10-7 | 10 | ||
| GN-20x20 | 10 | - | - | - | 18000 | 1.25x10-6 | 14 | ||
| GN-20x30 | 10 | - | - | - | 18000 | 1.25x10-6 | 19 | ||
| GN-25x25 | 12 | - | - | - | 14000 | 3,8x10-7 | 25 | ||
| GN-25x36 | 12 | - | . | - | 14000 | 3.8xl0-7 | 38 | ||
| GN-32x32 | 15 | - | - | - | 11000 | 1.15x10-7 | 60 | ||
| GN-32x41 | 15 | - | - | - | 11000 | 1.15xl0-7 | 70 | ||
| GN-40x44 | 19 | - | - | - | 4000 | 1.45x10-7 | 118 | ||
| GN-50x55 | 45 | - | - | 4000 | 2x10-7 | 235 | |||
| GN-50x66 | 45 | - | - | - | 4000 | 2x10-7 | 300 | ||
| GN-63x71 | 115 | - | - | - | 3800 | 1.8x10-7 | 400 |
