CSK40 Sprag Clutch One Way Bearing 40mm ID 80mm OD

Name: CSK40 Sprag Clutch One Way Bearing 40mm ID 80mm OD
Brand: Changzhou Tianniu Transmission Equipment Co., Ltd
SKU: CSK40/ CSK40PP-2RS
Price: 5.40 USD
Availability: InStock

Rincian produk

Tempat asal: Jiangsu, Cina

Nama merek: SUMA or OEM

Nomor model: CSK40/ CSK40PP-2RS

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 10

Harga: $5.40-6

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            CSK40 sprag clutch one way bearing, 40mm ID one way bearing, 80mm OD sprag clutch bearing


Peringkat presisi:	P0	Tipe Segel:	Tertutup
Bahan:	GCR15	Berat:	0,5kgs
Diameter luar:	80mm	Diameter dalam:	40mm
Kecepatan overrunning:	3000R/mnt	Ketebalan:	22mm
Kapasitas torsi:	325Nm	struktur:	Jenis Sprag
Beban dinamis:	15.54kn	Beban statis:	12.25kn
Torsi seret:	7ncm	Seri bantalan:	6201, 6202, 6203, 6204, 6205, 6206, 6207
Kecepatan Max:	3000R/mnt

Peringkat presisi:	P0
Tipe Segel:	Tertutup
Bahan:	GCR15
Berat:	0,5kgs
Diameter luar:	80mm
Diameter dalam:	40mm
Kecepatan overrunning:	3000R/mnt
Ketebalan:	22mm
Kapasitas torsi:	325Nm
struktur:	Jenis Sprag
Beban dinamis:	15.54kn
Beban statis:	12.25kn
Torsi seret:	7ncm
Seri bantalan:	6201, 6202, 6203, 6204, 6205, 6206, 6207
Kecepatan Max:	3000R/mnt

Deskripsi

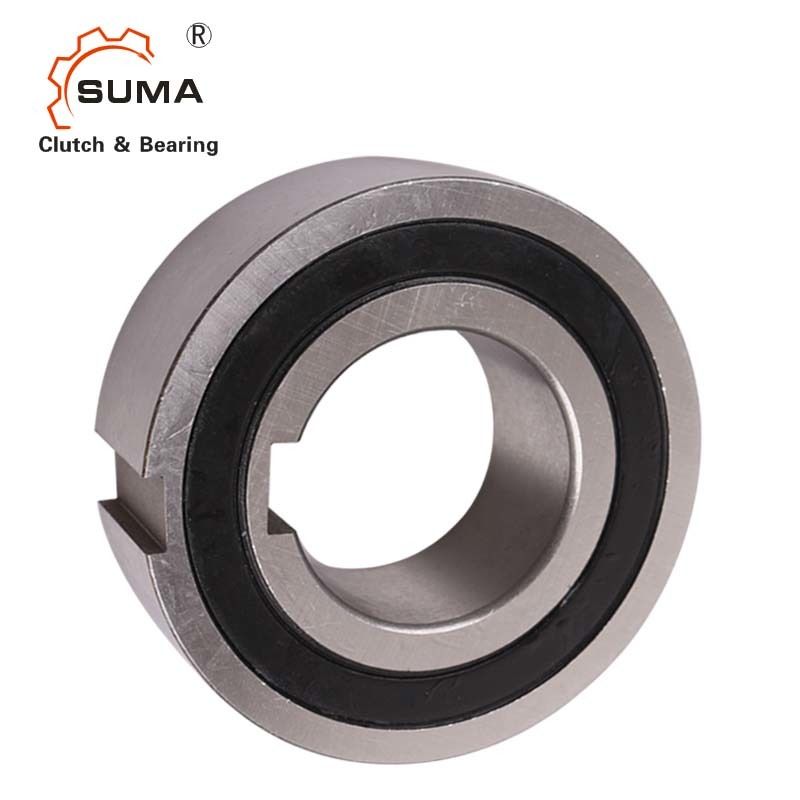

CSK40 Sprag Clutch One Way Bearing 40mm ID 80mm OD

CSK40 CSK40PP 2RS Freewheel One Way Bearing CSK Sprag Clutch

Product Overview

The CSK40 one way bearing is a sprag type freewheel integrated into a 62-series ball bearing (except size 8 and 40). It comes pre-lubricated and protected against dust particles larger than 0.3mm.

Key Features

Sprag type structure for reliable one-way operation
Formchromed sprags for extended overrunning life
GCr15 material for durability
Pre-lubricated and dust-protected
Wooden box packaging for protection

Technical Specifications

Parameter	Value
Model	CSK40
Material	GCr15
Inner diameter	40mm
Outer diameter	80mm
Thickness	22mm
Torque capacity	325Nm
Weight	0.5kg
Structure	Sprag type
Applications	Textile machines, fans, ventilators, printing machines

Performance Data

Type	Size (mm)	Torque (Nm)	Max Speed (min-1)	Dynamic Load (kN)	Static Load (kN)	Weight (kg)
CSK40	40	325	3000	15.54	12.25	0.5
CSK40 2RS	40	325	3000	15.54	12.25	0.6

Product Images
