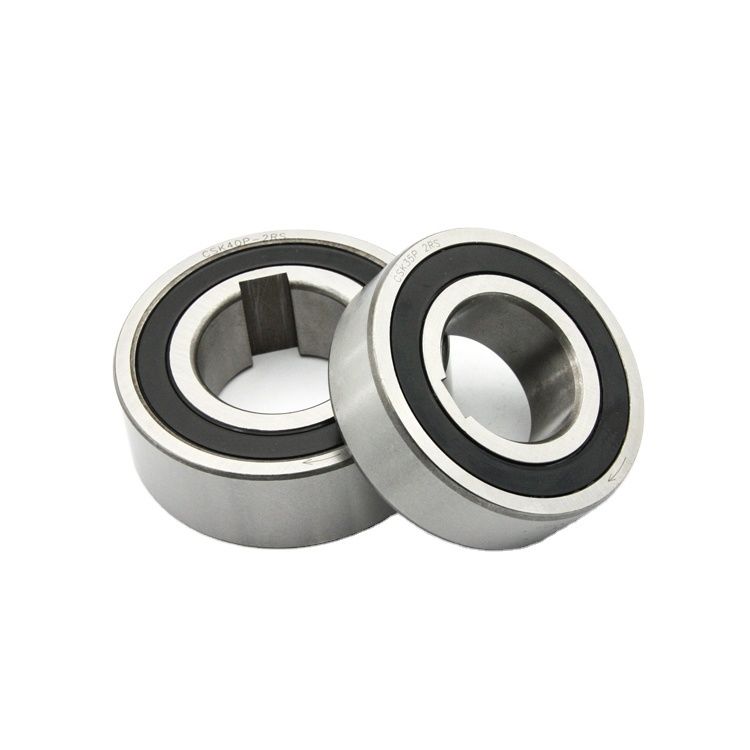

CSK Sprag Clutch Bearing 30mm ID 62mm OD P6 Precision

Rincian produk

Tempat asal: Jiangsu, Cina

Nama merek: SUMA

Nomor model: CSK

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 10

Harga: $1.70-2

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            30mm ID sprag clutch bearing, 62mm OD one way bearing, P6 precision sprag clutch


Peringkat presisi:	P6	Tipe Segel:	BUKA ZZ 2RS
Bahan:	GCR15	Berat:	0,21KGS
Diameter luar:	62mm	Diameter dalam:	30mm
Kecepatan overrunning:	4200r/mnt	Ketebalan:	16mm
Kapasitas torsi:	85NM	Beban dinamis:	11.7kn
Beban statis:	6.45kn	Torsi seret:	4.4NCM
Seri bantalan:	6206	Jenis alur pasak:	Jenis Sprag
Formchromed Sprags:	Ya

Peringkat presisi:	P6
Tipe Segel:	BUKA ZZ 2RS
Bahan:	GCR15
Berat:	0,21KGS
Diameter luar:	62mm
Diameter dalam:	30mm
Kecepatan overrunning:	4200r/mnt
Ketebalan:	16mm
Kapasitas torsi:	85NM
Beban dinamis:	11.7kn
Beban statis:	6.45kn
Torsi seret:	4.4NCM
Seri bantalan:	6206
Jenis alur pasak:	Jenis Sprag
Formchromed Sprags:	Ya

Deskripsi

CSK Sprag Clutch Bearing 30mm ID 62mm OD P6 Precision

One Way Sprag Clutch Bearing CSK20PP CSK 20PP CSK20 PP

CSK series are sprag type one way freewheel bearings. CSK P has one keyway in the inner side. CSKPP has two keyways on both inner and outer side. CSK P 2RS has one keyway and seals to protect from water resistance, and it is 5mm wider than CSKP and CSKPP.

Product Specifications

Product name	Sprag bearing
Model	CSK30PP2RS
Material	GCr15
Inner diameter	30mm
Outer diameter	62mm
Thickness	16mm
Torque capacity	85Nm
Weight	0.21kg
Package	Carton Box / Wooden box
Payment terms	TT. L/C, D/A,D/P,Western Union
Delivery time	2-4 days for the sample, 7 days for big order
