DC3175(3C)-N Sprag One Way Bearing 31.75mm ID 13.5mm Width

Name: DC3175(3C)-N Sprag One Way Bearing 31.75mm ID 13.5mm Width
Brand: Changzhou Tianniu Transmission Equipment Co., Ltd
SKU: DC3175 (3C) -N, DC3175 (3C)
Price: 7.10 USD
Availability: InStock

Rincian produk

Tempat asal: Jiangsu, Cina

Nama merek: SUMA

Nomor model: DC3175 (3C) -N, DC3175 (3C)

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 2

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            31.75mm one way bearing, sprag clutch bearing 13.5mm width, one way bearing with sprag clutch


Peringkat presisi:	P0	Tipe Segel:	Membuka
Jenis:	Sprang	Kekerasan Permukaan:	HRC60-62
Kuantitas sprag:	16 buah	Lebar Max:	13,5mm
Bahan:	GCR15	Kapasitas torsi:	159nm
Diameter dalam:	31,75mm	Diameter luar:	48.41mm
Batin kecepatan yang berlebihan:	6000R/mnt	Overrunning kecepatan luar:	3000R/mnt
Lebar:	13,5mm	Berat:	0,060kg
Ruang Sprag:	8.33mm

Peringkat presisi:	P0
Tipe Segel:	Membuka
Jenis:	Sprang
Kekerasan Permukaan:	HRC60-62
Kuantitas sprag:	16 buah
Lebar Max:	13,5mm
Bahan:	GCR15
Kapasitas torsi:	159nm
Diameter dalam:	31,75mm
Diameter luar:	48.41mm
Batin kecepatan yang berlebihan:	6000R/mnt
Overrunning kecepatan luar:	3000R/mnt
Lebar:	13,5mm
Berat:	0,060kg
Ruang Sprag:	8.33mm

Deskripsi

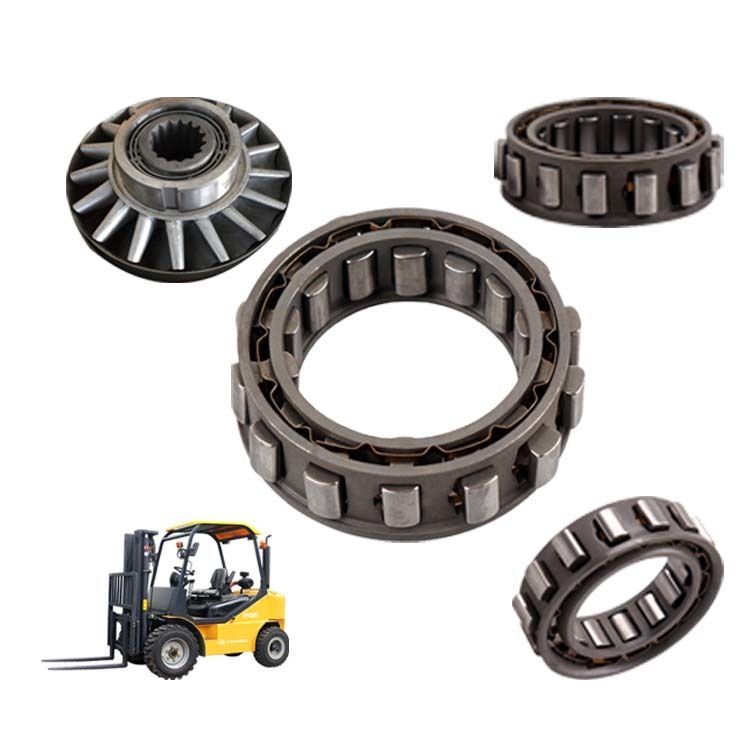

DC3175(3C)-N Sprag One Way Bearing 31.75mm ID 13.5mm Width

13.5 Thickness Freewheel DC3175(3C)-N Sprag One Way Bearings

Product Description

Freewheel sprag clutch DC one way bearings DC3175(3C)-N is a high-performance sprag type freewheel bearing cage designed for industrial applications.

Key Features

Sprag type freewheel bearing cage without inner or outer races
Requires installation in a design providing races, bearing support for axial and radial loads
Requires proper lubrication and sealing
Sprag tolerance must not be exceeded for proper function
Inner and outer races must have minimum plain width without recesses

Technical Specifications

Product Name	DC one way bearings
Model	DC3175(3C)-N
Torque capacity	159Nm
Inner diameter	31.75mm
Outer diameter	48.41mm
Overrunning speeds (Inner race)	6000r/min
Overrunning speeds (Outer race)	3000r/min
Material	GCr15
Width	13.5mm
Weight	0.060kg
Package	Carton Box / Wooden Box
Payment terms	TT, L/C, D/A, D/P, Western Union
Delivery time	IN STOCK

Product Catalogue

Detailed Specifications

Size	Torque	Overrunning speeds [min-1]	Øa + 0,008 - 0,005	Øc ± 0,013	Sprag space	emin	Ødmin	Øbmax	NO of clips	Num of sprags	Weight
DC2222G	63	8600	4300	22.225	38.885	8.33	10.0	50	15	-	12	0.030

Product Images

Packaging & Shipping

Manufacturer Information

Changzhou Suma Precision Machinery Co., Ltd is a specialized manufacturer producing various one way bearings, one way clutches, backstop clutches, overrunning clutches, needle roller bearings and other high-technology bearings.

Production Process

Frequently Asked Questions

How do you pack the goods?

Total less than 25 KG: Each in white box + 19*18*9cm box + 29*28*19CM carton box

Total Weight over 100KG: Carton box + Wooden Box / Wooden Pallet

Can I get samples from you?

It is highly encouraged to ask for samples for quality check.

Can you promise to deliver the goods in time?

Small items: In stock

Medium Items: 10-15 Days

Big items: 20-25 Days
