MI300 Cam Clutch Bearing 314Nm Torque 300 Cycles/Min for Printing

Name: MI300 Cam Clutch Bearing 314Nm Torque 300 Cycles/Min for Printing
Brand: Changzhou Tianniu Transmission Equipment Co., Ltd
SKU: MI300 MG300
Price: 126.00 USD
Availability: InStock

Rincian produk

Tempat asal: Cina

Nama merek: SUMA

Nomor model: MI300 MG300

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 1

Harga: $108-145

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            MI300 cam clutch bearing 314Nm torque, one way bearing for printing, 300 cycles per minute cam bearing


Peringkat presisi:	P0	Tipe Segel:	Membuka
Jenis:	Cam, cam clutch	Kapasitas torsi:	314 nm
Pengindeksan Max:	300 siklus/menit	Torsi seret:	0,31 nm
Berat:	1,8KG	Ukuran Bore:	19 mm
Balapan luar:	77 mm	Keyway:	5X2
PCD:	63 mm	Hm:	13 mm
Lubang yang disadap:	4xm6xp1.0	Max overrunning:	2800 R/Min
Kecepatan pengindeksan maks:	900 siklus/menit

Peringkat presisi:	P0
Tipe Segel:	Membuka
Jenis:	Cam, cam clutch
Kapasitas torsi:	314 nm
Pengindeksan Max:	300 siklus/menit
Torsi seret:	0,31 nm
Berat:	1,8KG
Ukuran Bore:	19 mm
Balapan luar:	77 mm
Keyway:	5X2
PCD:	63 mm
Hm:	13 mm
Lubang yang disadap:	4xm6xp1.0
Max overrunning:	2800 R/Min
Kecepatan pengindeksan maks:	900 siklus/menit

Deskripsi

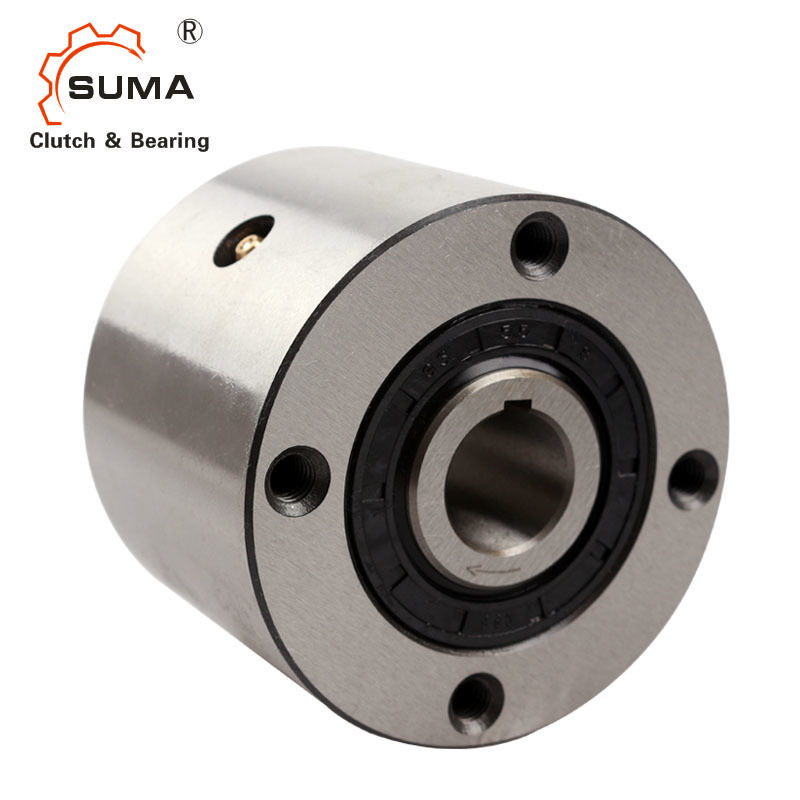

MI300 Cam Clutch Bearing 314Nm Torque 300 Cycles/Min for Printing

MI300 MG300 One Way Cam Clutch Bearing for Offset Printing Machine

Key Features

Primarily designed for indexing applications
Delivers high-precision intermittent feed
Ideal for medium- and low-speed indexing with short feed lengths
Excellent performance in continuous engagement operations with load changes

Specifications

Item	MI300 one way cam clutch
Precision	P0
Type	cam
Bore size (mm)	19
Outer race (mm)	77
Torque (KN)	314Nm
Max. Indexing (cycle/min)	300
Drag Torque(Nm)	0.31
Weight (kg)	1.8kg
Package	wooden box or customizable
Delivery time	5-7 days after order confirmed
Payment terms	L/C, T/T, D/P, D/A, Western Union

Technical Parameters

Model	Torque			Max.		Bore Size	Keyway	Dimensions (mm)			PCD	Tapped Holes	Weight (kg)
Model	Capacity (Nm)	Drag Torque (Nm)	Overrunning (r/min)	Indexing (cycle/min)	A	Bore Size	Keyway	B	C		PCD	Tapped Holes	Weight (kg)
MG 300	314	0.23	2800	900	19	5x2	63	77	60	66	4xM6xP1.0	1.8

Product Images

Application Examples

Frequently Asked Questions

How do you pack the goods?

Total less than 25 KG: Each in white box + 19*18*9cm box + 29*28*19CM carton box
Total Weight over 100KG: Carton box + Wooden Box / Wooden Pallet

Can I get samples from you?

We highly encourage requesting samples for quality verification.

Can you promise timely delivery?
